WIRELESS

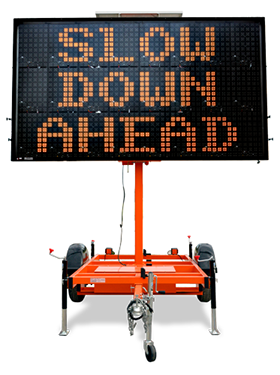

MB14281

FULL MATRIX

SPECIFICATIONS

Trailer

Width: 82” fender to fender

Length with tongue: 172”

Length without tongue: 120”

Transport Height: 110”

Operating Height: 170”

Salt Spray: 1,000 hours

Paint: Powder Coated

Main frame: 2”x 5”x 1/8”

Front/Rear Cross members: 2”x 3”x 1/8”

Wheels: 15”

Gross Weight: 1655 lbs

Axle: 3500 lbs double leaf spring

Fenders: High-density polyethylene

Jacks: (4) adjustable corner jacks & tongue jack with wheel

Tongue and Safety Chains:  2” ball hitch; 1/4” safety chains with hooks



Display Modules

Pixel Matrix: 27×48 Pixel Arrangement

LED Module: Each is 6×9 matrix

LED’s Per Pixel: 4

LED Type: Agilent amber 592NM

Viewing Angle: 30 degrees

Visibility: Up to 1 mile

Hours: 100,000 hour LED

Lines: Displays 3 lines of text and graphics in regular. In short font 4 lines.

Characters per line: 8 characters in regular font. 6 character in bold font.

Character Height: 18” standard

*If one module fails, remainder of sign is unaffected



DISPLAY ENCLOSURE

Construction: Extruded Aluminum 6063 alloy

Panel Size: 81” x 6” x 142”

Paint: Powder coated

Salt Spray: 1000 hours

UV Resistant: 500 hours

Seal: Weather resistant

Venting: Vented top and bottom

Front face: 1/8” Lexan UV matte finish

Raising and lowering of display: Electro-hydraulic

Secondary raise and lowering: Manual hand pump



Power and Charging

Batteries: (6) 12 volt batteries for combined 660 amps

Battery Charger: 12 volt, 1000 watt, 60 amp

Recharge: 24 hours

On-Board diagnostics to monitor: Solar, battery, and load

Solar: (1) 140 watt solar panel

Regulator: Low voltage & high voltage disconnects built into CrossTalk



keyboard Controller

Preprogrammed Messages: 260 also includes arrow and

MUTCD symbols

User programmable: 100

Message Timing: Slow, medium, fast

Dimming: Auto or Manual

Protection: Password

Quick Message Selection: Thumb wheel to quickly select

between 16 user programmable messages.

Controller Display: LCD

Data Entry: Mini Keyboard

Memory: Non volatile



keyboard Controller

Wireless Device: CrossTalk Controller

Online Programming: Yes

Controller Display: Any internet connected device

 (computer, tablet, smartphone)

Data Entry: Web-based software

*“Auto Resume” after power failure

Control Cabinet: Weatherproof aluminum construction



*Pre-wired to accommodate radar,cell modem, and PC

*“Auto Resume” after power failure



Options

• Locking lug nuts
• Radar
• Pintle ring or bulldog hitch
• Electric or hydraulic brakes
• Custom Paint
• Outrigger Stability Supports
• Other Options available





ON-BOARD KEYBOARD, BLUETOOTH OR ONLINE PROGRAMMING

Choose from K&K Systems’ on-board keyboard, Bluetooth, or wireless remote programming via the CrossTalk Controller and web interface.
