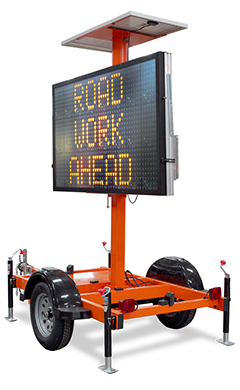

Trailer

Width: 68”

Length with tongue: 1481/4”

Length without tongue: 981/2”

Transport Height: 105”

Salt Spray: 1,000 hours

Paint: Powder Coat

Main frame: 3”x5”x1/8”

Front/Rear Cross members: 3”x3”x1/8”

Wheels: 15”

Axle: 3500lbs leaf spring

Fenders: 16 gauge bolt on

Jacks: (4) adjustable corner jacks & tongue jack with wheel

Hitch: 2” ball



Display Modules

Pixel Matrix: 27x48 Pixel Arrangement

LED Module: Each is 6x9 matrix

LED’s Per Pixel: 3

LED Type: Agilent amber 592NM

Viewing Angle: 30 degrees

Visibility: 4800 feet

Hours: 100,000 hour LED

Lines: Displays 3 lines of text and also displays Graphics

Characters per line: 8 (12 characters optional)

Character Height: 12”

*If one module fails the remainder of board is not affected.



DISPLAY ENCLOSURE

Construction: Extruded Aluminum 6063 alloy

Length: 97” Width: 57” Depth: 6”

Paint: Powder coat paint

Salt Spray: 1000 hours

UV Resistant: 500 hours

Seal: Weather resistant

Venting: Vented top and bottom

Front face: 1/8” Lexan UV matte finish

Raising and lowering of display: Winch



Power and Charging

Batteries: (6) 6 volt 675 combined amp batteries

Battery Charger: 110 Volt, 1000 watt, 60amp

Recharge: 24 hours

On-board diagnostics to monitor: Solar, battery, and load

Solar: (2) 80 watt Solar panels

Regulator: 30 amp regulator with low voltage & high

voltage disconnect.



Controller

Preprogrammed Messages: 260 also includes arrow and

MUTCD symbols

User programmable: 100

Message Timing: Slow, medium, fast

Dimming: Auto or Manual

Protection: Password

Quick Message Selection: Thumb wheel to quickly select

between 16 user programmable messages.

Controller Display: LCD

Data Entry: Mini Keyboard

Memory: Non volatile

*Pre-wired to accommodate radar,cell modem, and PC

*“Auto Resume” after power failure





Options

Locking lug nuts

Cell Modem

Radar

Pintle ring or bulldog hitch

Electric or hydraulic brakes

Custom Paint

Other Options available





SPECIFICATIONS
