AVIATION
CONTROL SYSTEMS
Status reporting at your fingertips anytime, anywhere

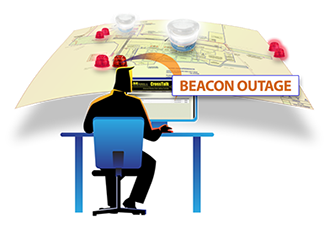

The K&K Aviation Control System combines K&K’s CrossTalk Advanced Technology with our Aviation LED Beacon Series for optimal beacon monitoring efficiency. This system has been designed to monitor and report the status of aviation lighting anytime, anywhere. K&K Systems’ proprietary communication device, the CrossTalk, using its’ password protected, cloud-based software allows you to monitor and receive status logs on a single beacon or multiple beacons in multiple locations from any internet connected device. Each Aviation Beacon System has a CrossTalk device located inside the control box. It constantly monitors the beacon’s daylight and night activation, usage, and even failure. In the event of a failure, the CrossTalk immediately sends a notification to the predesignated technician via email and text message so a beacon outage time is minimal.
Contact us today to manage manpower and lighting efficiently tomorrow.
+
=
Features
- 24/7 Monitoring and Status Logs
- K&K CrossTalk Cloud-Based Communication System reports and notifies beacon status for immediate response time for outages
- Aviation LED Beacon Technology with Daylight and Night modes
- 10 Year Service Plan
- Compact Unit Easily Installs
- Mounting locations include:
Tower
High Mast Lighting
Mountain Top
Building Roof
Bridge
aviation LED beacon
Operating Voltage: AC90-260V
Power Consumption: <40W (daylight) <15W (night)
Flashing Frequency: 20-60 times/minute
Light Intensity: >20000cd (white) / 2000cd (red)
Life Span: >100,000 hours
Emitting Colors: White/Red
Beam Angle: 360° horizontal, more than 3° vertical spread
Overall Size: 10.55” x 8.11”
Weight: 16 lbs.
Optical Sensitivity: 100 Lux
Operating Temperature: -40° F to 131° F
Control Cabinet
Construction: All Aluminum
Seal: Weather Resistant
Closure: Hinged
Crosstalk Controller
- On-board 4G/LTE/LTE-M cellular modem
- Built-in solar controller with Maximum Power-Point Tracking (MPPT) and 3-stage
battery charging
- On-board 900MHz local-area wireless (optional). Support for XBee and Bluetooth (future)
- Compact size, rugged panel-mount enclosure.
- Real-Time Clock / Calendar (RTCC).
- Digital / PWM out (4) with current sensing
- Dry-contact / switch input (1)
- Digital inputs (2) 5-30VDC
- External RS-232 serial port
- Low-voltage disconnect (LVD) battery management
- Extended temperature operation: -40 to +85 deg C
Options
- L-810 Obstruction Light
- Stainless Steel Control Cabinet
- Spun Aluminum Mounting Post
Specifications
Clean designed control cabinet for simple maintenance
Example of compact unit for easy installation.
Video of installation in Kentucky
Emits Red Light for Night Hours
Emits White Light for Daylight Hours
