MB9757WT
Features
- Graphic Capability
- Compact Trailer Design
- Quick Message Selection
- Removable Tongue
- Lockable Cabinets
- Password Protection
- Powder Coat Paint
- Tongue Jack (with wheel)
- NTCIP Controller Standard
- Independent Module Operation
- Photocell for Auto dimming
- RF Immunity

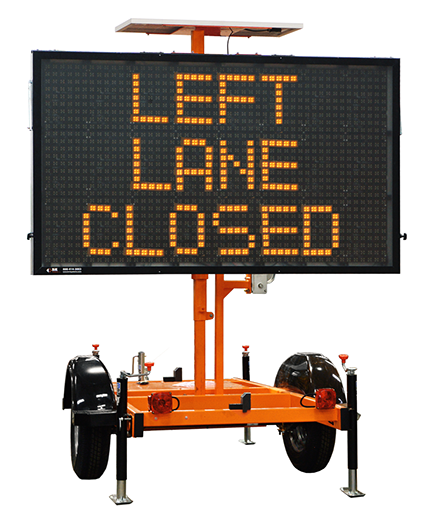

The solar powered MB9757WT Portable Changeable Message Sign is capable of three lines of alphanumeric 12” high text and graphics/animations. The display is powder coated matte black to reduce glare and is protected by a Lexan face. The all LED 97” x 57” display is self-contained and programmed with an NTCIP compliant on-board keyboard that supports custom and predefined messages in text and graphics. The winch style trailer that has a powder coat finish for durability.
Trailer
- Width: 68”
- Length with tongue: 1481/4”
- Length without tongue: 981/2”
- Transport Height: 105”
- Salt Spray: 1,000 hours
- Paint: Powder Coat
- Main frame: 3”x5”x1/8”
- Front/Rear Cross members: 3”x3”x1/8”
- Wheels: 15”
- Axle: 3500lbs leaf spring
- Fenders: 16 gauge bolt on
- Jacks: (4) adjustable corner jacks & tongue jack with wheel
- Hitch: 2” ball
Display Modules
- Pixel Matrix: 27x48 Pixel Arrangement
- LED Module: Each is 6x9 matrix
- LED’s Per Pixel: 3
- LED Type: Agilent amber 592NM
- Viewing Angle: 30 degrees
- Visibility: 4800 feet
- Hours: 100,000 hour LED
- Lines: Displays 3 lines of text and also displays Graphics
- Characters per line: 8 (12 characters optional)
- Character Height: 12”
*If one module fails the remainder of board is not affected.
Options
- Locking lug nuts
- Cell Modem
- Radar
- Pintle ring or bulldog hitch
- Electric or hydraulic brakes
- Custom Paint
- Other Options available
DISPLAY ENCLOSURE
- Construction: Extruded Aluminum 6063 alloy
- Length: 97” Width: 57” Depth: 6”
- Paint: Powder coat paint
- Salt Spray: 1000 hours
- UV Resistant: 500 hours
- Seal: Weather resistant
- Venting: Vented top and bottom
- Front face: 1/8” Lexan UV matte finish
- Raising and lowering of display: Winch
Power and Charging
- Batteries: (6) 6 volt 675 combined amp batteries
- Battery Charger: 110 Volt, 1000 watt, 60amp
- Recharge: 24 hours
- On-board diagnostics to monitor: Solar, battery, and load
- Solar: (2) 80 watt Solar panels
- Regulator: 30 amp regulator with low voltage & high
- voltage disconnect.
Controller
- Preprogrammed Messages: 260 also includes arrow and
- MUTCD symbols
- User programmable: 100
- Message Timing: Slow, medium, fast
- Dimming: Auto or Manual
- Protection: Password
- Quick Message Selection: Thumb wheel to quickly select
- between 16 user programmable messages.
- Controller Display: LCD
- Data Entry: Mini Keyboard
- Memory: Non volatile
*Pre-wired to accommodate radar,cell modem, and PC
*“Auto Resume” after power failure
